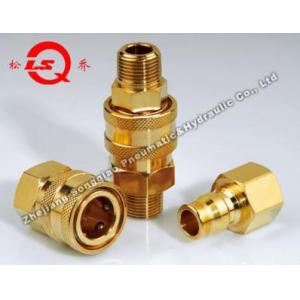

Japanese Type Hydraulic Quick Coupling with 1000 to 2000 Psi Pressure Range and 1/8 to 1/2 Inch Sizes
Ask Latest Price
Video Channel
MOQ :1
Price :1
Model NO. :LSQ-RD (NON VALVE BRASS)
Working Pressures :1000 to 2000 Psi
Mechanical Connection :Locking Balls
Body Size :1/8, 1/4, 3/8, 1/2
Rate Pressure :1000-2000 PSI
Rated Flow :3, 6, 12, 12 GPM
Temperature Range :-20ºC to +120ºC
Test Fluid :Oil-200SUS
Flow Conversion :1GPM=3.78L/Min
Pressure Conversion :1PSID=0.0069MPa
Material Options :Brass, 304 Stainless Steel
Compatibility :NITTO TSP Series
Part Dimensions :Multiple sizes (see tables)
Thread Sizes :ZG1/8, ZG1/4, ZG3/8, ZG1/2, ZG3/4, ZG1
Production Capacity :100000 Set/Month
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description
Descripton:

LSQ-RD Japanese type hydraulic quick coupling
Applications: The LSQ-RD Series are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.
Specifications:

Body Size(in) 1/8 1/4 3/8 1/2
Rate Pressure(PSI)
Brass Cplr/Npl 1000 1000 1000 1000
SS Cplr/Npl 2000 2000 1500 1500
Rated Flow(GPM) 3 6 12 12
Temperature Range(std seals) -20ºC to +120ºC


LSQ-RD Features:
1.The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy clesning in applications where the same lines are used for more than one media.
2.LSQ-RD couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3.LSQ-RD nipples are available in brass and 304 stainless steel as standard product materials.
4.LSQ-RD nipples are available in 304 stainless steel, brass.
5.The LSQ-RD is an "interchange" coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
6.Compatible with NITTO TSP Series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
PART NO. LS ¢D HEX1 A T
LSQ-RD-01SF 27 17.5 14 9 ZG1/8
LSQ-RD-02SF 32 24 19 13 ZG1/4
LSQ-RD-03SF 35.8 28.3 23 13 ZG3/8
LSQ-RD-04SF 42.6 35 29 17 ZG1/2
LSQ-RD-06SF 49.5 41 36 18 ZG3/4
LSQ-RD-08SF 59.3 57.8 50 22 ZG1



PART NO. LS ¢D HEX1 A T
LSQ-RD-01SM 30 17.5 14 9 ZG1/8
LSQ-RD-02SM 42 24 19 13 ZG1/4
LSQ-RD-03SM 46.3 28.3 23 13 ZG3/8
LSQ-RD-04SM 56.1 35 29 17 ZG1/2
LSQ-RD-06SM 61 41 36 18 ZG3/4
LSQ-RD-08SM 67.3 57.8 50 22 ZG1

PART NO. LP C HEX2 A T
LSQ-RD-01PF 26 15.5 14 9 ZG1/8
LSQ-RD-02PF 35 18 17 13 ZG1/4
LSQ-RD-03PF 38 21.2 21 13 ZG3/8
LSQ-RD-04PF 45 24.5 29 17 ZG1/2
LSQ-RD-06PF 50 28 32 18 ZG3/4
LSQ-RD-08PF 61 36 41 22 ZG1

PART NO. LP C HEX1 A T
LSQ-RD-01PM 32 15.5 12 9 ZG1/8
LSQ-RD-02PM 38 18 17 13 ZG1/4
LSQ-RD-03PM 43 21.2 19 13 ZG3/8
LSQ-RD-04PM 52 24.5 23 17 ZG1/2
LSQ-RD-06PM 56 28 29 18 ZG3/4
LSQ-RD-08PM 73 36 41 22 ZG1
